Coolant Distribution Units (CDU) for Data Center Cooling

Coolant distribution units (CDUs) cool, distribute, and regulate fluid within a liquid cooling system. By optimizing both individual components and how they work together, Boyd builds efficient, high capacity CDUs in dense volumes.

Increase-Performance

Meet Demanding Ramp and Scale

Redundant manufacturing across three continents and ample capacity meet demanding schedules with agility.



Extend-Battery-Lifetime

Trusted Reliability

Craftsmanship, expertise, and quality from producing CDUs over four decades

Decorative Icon

Push System Performance

Exceptional CDU capabilities and features maximize cooling and compute system performance.



Next Level Functionality and Versatility

Redundancies, safety systems, alerts, and integration ease with facility systems enhance installation, management, service, and maintenance efficiency.

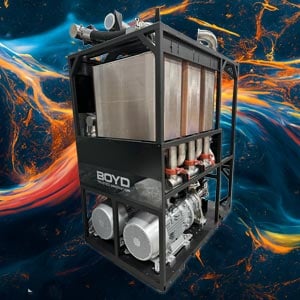

Boyd Enterprise Coolant Distribution Units

ROL1100 48U32 1 300x300 1

ROL1100-48U32

Boyd’s ROL1100 provides effective data center cooling capability by utilizing facility water within an in-row configuration. It has a cooling capacity range of 550 kW to 1100 kW with typical approach temperatures to
support multiple server racks.

RAL110 04U19 300x300 1

RAL110-04U19

Boyd’s 4U Liquid-to-Liquid Cooling Distribution Unit is a state-of-the-art cooling system that maximizes cooling capability in its given volume. Boyd’s 4U CDU has a capacity of up to 110 kW depending on heat load and approach temperature requirement.
RAA32 10U21 300x300 1

RAA32-10U21

Boyd’s 10U Liquid-to-Air CDU is an effective system to provide liquid cooling to high-power computing in a data center or edge servers where facility water is unavailable. Depending on heat load and temperature requirements, Boyd’s 10U CDU has a capacity up to 32 kW.
RAA15 10U19 300x300 1

RAA15-10U19

Boyd’s 10U Liquid-to-Air Cooling Distribution Unit is an advanced cooling system that maximizes cooling capability in its given volume. Boyd’s 10U CDU has a capacity of up to 15 kW depending on heat load and approach temperature requirement.

How to Cool a Data Center with an In-rack Liquid Cooling System

(View transcript)

How to Cool a Data Center? Liquid Cooling System Solutions

(View transcript)

What is a Coolant Distribution Unit (CDU)?

Coolant distribution units, also called cooling distribution units, are devices used in cooling systems to distribute coolant, such as water or other fluids, to different parts of a machine or process that require cooling. They are typically found in large cooling systems that need to regulate temperature in a variety of different components.

Have a Question?

An in-rack Coolant Distribution Unit

What Does a Coolant Distribution Unit Do?

Coolant distribution units are essential components that ensure liquid cooled systems meet or exceed lifetime expectations. Operation logic integrated into intelligent controllers combined with smart controls manage server and data center cooling system performance. Smart controls respond to peak demands while remaining economical and efficient during non-peak operation and prevent problems before they occur. Blind mate quick disconnects with 360 swivel fittings make servicing data center cooling systems fast to minimize maintenance downtime.

How Does a Coolant Distribution Unit Work?

A coolant distribution unit contains a pump that circulates coolant through a network of pipes or channels, distributing it to various components like servers, processors, or other high heat components in large, high power devices that need cooling. CDUs may also contain valves, filters, and other components to control and monitor coolant flow.

In-Rack-CDU
In-Rack-CDU-4

Why Use a Coolant Distribution Unit?

As computing chip power increases, liquid cooling becomes the necessary cooling technology to replace conventional air cooling. Boyd’s CDUs are advanced cooling systems that maximize cooling capability with greater power and compute density in given volume with more energy efficiency. A liquid cooled server negates the need for bulky heat sinks and loud fan trays in data center cooling systems that create significant environmental noise pollution and consume more energy, so CDUs remove excessive noise and vibration from data centers to improve data integrity and data center workplace safety, while reducing energy use. CDUs increase IT equipment’s safe packaging density into a rack.

Coolant Distribution Unit Challenges

Liquid cooling provides responsive, high-capacity cooling, but comes with additional design and project challenges. From leak-proofing, additional capital expense, installation and training costs, system architects must weigh performance and sustainability benefits against these project requirements above air cooling. Boyd’s coolant distribution units are designed and manufactured to mitigate potential risk to enable the fullest benefit of liquid cooling.

Boyd In Rack CDU 566x300 1

Why Use Boyd’s Coolant Distribution Units?

Boyd’s CDUs lower data center total cost of ownership and energy demand. Right-sized and custom configured CDUs for specific applications mean hyperscale compute systems get the exact, optimal cooling performance the system needs, when it needs it in data centers that are more environmentally sustainable.

Full Liquid Cooling Systems: Integrating CDUs with Other Thermal Technologies

Integrate CDUs in server rack cooling systems with cold plates custom designed to maximize interface with CPUs and GPUs through machined custom geometries and skylines for maximum heat transfer to the liquid cooling system. Leverage high reliability manifolds to safely direct liquid throughout a server rack.

CDU-Front

Boyd’s Coolant Distribution Unit Flexibility and Space-Saving Benefits

In a server cooling system, integrated CDUs enable greater processing power density meaning more servers can fit in each data center rack. Integrate CDUs directly into facility water or facility-level cooling systems for direct rack server cooling or design self-contained cooling that offers the next level of flexibility for liquid cooled servers. Leverage CDU cooling capacity to cool the rack, chassis, blade, or even down to the processor or silicon. CDUs can be designed to integrate into existing data center or chassis configurations and infrastructure.

Denser Processing or Smaller Equipment with Reliable Boyd CDUs

Flexibility and space-saving benefits may enable data center and server rack designers to completely rethink footprint configuration opportunities to maximize power density. Boyd CDUs are designed to meet IEC62368-1 and tested to withstand 3X maximum working pressure. All new subcomponent designs undergo harsh maximum pressure testing to destruction to ensure reliable data and server cooling systems. Reliability testing incudes thermal cycling, min /max storage, and packaging testing.

CDU-1
Enterprise Solutions 3D

Enterprise Solutions

Delve into the breadth of Boyd’s solution portfolio for data centers, hyperscale computing, and other rack-based solutions in our interactive 3D tool.

Reliable Boyd CDU Field Performance

Decades of reliable field performance have enabled Boyd to fine tune system design in liquid cooled servers with validated thermal reliability and leak-free performance for optimal data center cooling. CDUs feature redundancy pump design, dynamic condensation-free control, automatic coolant replenishing, a bypass loop for stand-by operation and automatic leak detection.

Boyd Enterprise Cooling Distribution Units

ConfigurationModel NumberCooling Capacity @ ATDCooling Capacity @ ATDFlow RateDimensions WxLxHMore Info
Row - L2LROL1100-48U321100 kW @ 8°C550kW @ 4°C125 GPM @ 30 psi
473 LPM @ 2.1 Bar
800 mm x 1205 mm x 2147 mm
(31.5 in. x 47.4 in. x 84.5 in.)
Contact Us
Rack - L2LRAL110-04U19110 kW @ 12°C50 kW @ 6°C24 GPM @ 10 psi
90 LPM @ 0.7 bar
450mm x 966mm x 175 mm
(17.7 in. x 38.0 in. x 6.9 in.)
Contact Us
Rack - L2ARAA32-10U2132 kW @ 24°C16 kW @ 12°C16 GPM @ 12 psi
60 LPM @ 0.8 bar
538 mm x 982 mm x 440 mm
(21.2 in. x 38.7 in. x 17.3 in.)
Contact Us
Rack - L2ARAA15-10U1915 kW @ 24°C6.5 kW @ 12°C12 GPM @ 10 psi
45 LPM @ 0.7 bar
445 mm x 850 mm x 443 mm
(17.5 in. x 33.5 in. x 17.4 in.)
Contact Us

Boyd Industrial Cooling Distribution Units

System Type Nominal Cooling Capacity Standard Process Temp. Temperature Stability Ambient Temperature Range Dimensions (L x W x H) Datasheet
MCS20 – Stand Alone Liquid to Air 1.3 kW  55°C
(131°F)max
  15.5°C to 27°C
(60°F to 80°F)
439 x 384 x 338mm
(17.3 x 15.1 x 13.3in)
 MCS20 Datasheet
MCS30 – Stand Alone Liquid to Air 2.1 kW   55°C
(131°F)max
  15.5°C to 27°C
(60°F to 80°F)
 439 x 384 x 338mm
(17.3 x 15.1 x 13.3in)
MCS30 Datasheet
MCS40 – Stand Alone Liquid to Air 2.4 kW  55°C
(131°F)max
  5°C to 40°C
(41° to 104°F)
381 x 381 x 610mm
(15 x 15 x 24in)
MCS40 Datasheet
MCS50 – Stand Alone Liquid to Air 3.5 kW  55°C
(131°F)max
5°C to 40°C
(41° to 104°F)
381 x 381 x 610mm
(15 x 15 x 24in)
MCS50 Datasheet
LCS20 Liquid to Liquid 20 kW 10°C to 60°C +/- 0.5 °C 5°C to 40°C
(41°F to 104°F)
543 x 705 x 810mm
(21.4 x 27.8 x 31.9in)

Liquid to Liquid Cooling Distribution Units (L2L CDU)

High Impact Cooling with Facility Water

Liquid to Liquid CDUs require facility water to remove heat from rack and row equipment but come with a battery of benefits to offset added system complexity. Fully liquid cooled data centers maximize energy efficiency from the higher heat capacity of liquid throughout the full data center. These liquid cooling systems enable smaller footprints and lower total cost of ownership, ideal for artificial intelligence and advanced analytics, blockchain and cryptocurrency, mainframe and gaming servers, and supercomputer applications.

Engineers-Guide-to-Hyperscale-Network-Material-Applications

Liquid to Air Cooling Distribution Units (L2A CDU)

Self-Contained Liquid Cooling Systems

Many facilities are not designed for system-wide liquid cooling, so Liquid to Air Coolant Distribution Units provide the benefits of liquid cooling without the full-scale implementation of facility water. L2A CDUs leverage data center air conditioning to dissipate heat from the server rack or row to enable localized liquid cooling for high output IT equipment. Liquid to Air CDUs maximize possible cooling in established air-cooled data centers, minimize thermal management equipment and installation costs, and cool at higher capacity than air alone would offer.

Engineers-Guide-to-Hyperscale-Network-Material-Applications
CDU

In-Rack Coolant Distribution Units

Optimized to Efficiently and Seamlessly Integrate into a High-Power Device

In-Rack CDUs are optimized to efficiently and seamlessly integrate into a large, high power device like a data center server chassis or medical imaging equipment. In-Rack CDUs are configured in standard 2U and 4U cloud data center server configurations or common dimensions across standard medical and industrial models.

Designed for Maximum Performance and Efficient Installation or Maintenance

Server rack cooling is easy to use with CDU installation instructions as simple as completing the liquid loop, filling the liquid reservoir tank, and flipping the switch. These systems offer a fast option to upgrade to liquid cooling in a cost effective and reliable package and can be fully self-contained or integrated into available facility cooling systems.

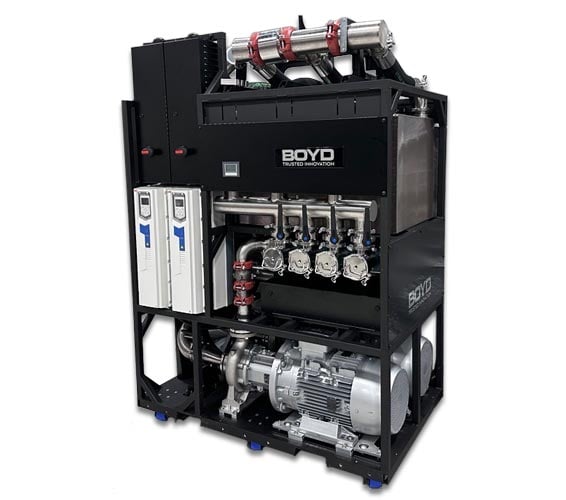

In-Row Cooling for Greater Power and Compute Density

In-Row CDUs are full rack-sized Coolant Distribution Units installed alongside a row of server racks to provide efficient data center cooling. In-row CDUs circulate coolant in a closed loop system on the secondary, cooling side and utilize facility water on the primary, heat rejection side. In-Row CDU cooling capacity is on the scale of 600-800KW, enough heat dissipation to cool 5-6 high power server racks.

A freestanding in-row Coolant Distribution Unit
